FSC2 SINGLE BAG FILTER
FSC2 Single Bag Filter Housings are used in low-flow applications, where high temperatures and pressures are not required.
These stainless steel bag filter housings have durable SS construction and include a safe foolproof V-clamp to easily close and seal your housing.
All FSC2 vessels fit size #2 filter bags. We always have these filter bags in stock, ready to ship to you.
Call now or when you want free expert application advice and your FREE QUOTE, 248-919-6119.

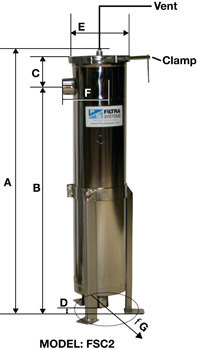

FSC2 Bag Filter Housings
Detail of FSC2-QuickT-Bolt-Lid-Clamp
| Dimensions | |
| A | 38 7/8″ – 52 5/8″ |
| B | 33 3/4 ” – 47 1/2″ |
| C | 3 15/16″ |
| D | 0″ – 13 3/4″ |
| E | 8″ |
| F | 5 3/8″ |
| G | 12 5/8″ |
Product Information
- Affordably Priced
- Simple Design
- No Tools required. V-Clamp cover closure makes changing bags Fast and Easy
- No Bypass – bag sealing is guaranteed with our proprietary bag clamping mechanism
- Fast & Easy to Clean – Stainless steel bag filter housings are electropolished for the easiest rinsing and cleaning
- Housing will accept either standard or pleated bags
- Bottom Outlet & Adjustable Legs simplify your installation
- Large In-Stock Inventory of stainless steel single bag filters available and ready for fast shipping to you
- On the filter bag size chart below: 01-02-02 (First 01 is the # of bags (1), second 02 is the inlet flange size (2″), and third 02 is the outlet size (2″)
Specifications
- All vessels have 1/2″ npt vent connection
- Hydraulic Test Pressure:
( 180 psig ) - Design Temperature:
( 14 F – 194 F ) - Filter Volume:
- #2 (7.40 gal)
- Nuts & Bolts:
Zinc coated carbon steel - Empty Weight:
- #2 (55.0 lbs)
Order Information
| Series | Model # | Bag Quantity | Bag Size | Material | Max Pressure (psi) | Connection Inlet/Outlet | Connection Type |
|---|---|---|---|---|---|---|---|
| FSC2 | FSC2010202S4NR2 | 1 | 2 | SS 304 | 87 | 2″ | NPT |
| FSC2 | FSC2010303S4NR2 | 1 | 2 | SS 304 | 87 | 3″ | NPT |
| FSC2 | FSC2010202S6NR2 | 1 | 2 | SS 316L | 87 | 2″ | NPT |
| FSC2 | FSC2010303S6NR2 | 1 | 2 | SS 316L | 87 | 3″ | NPT |
- FSC2 series vessels have V-Clamp covers and are rated for 116 psig max. working pressure.
- ASME not available on this design.
- 01-02-02 (First 01 is the # of bags (1), second 02 is the inlet flange size (2″), and third 02 is the outlet size (2″).
- Material of construction selection is S4 (304SS) or S6 (316SS)
- Vessel gasket selection is V (Viton) or N (nitrile).
- Vessel includes a perforated SS bag support basket.
- Basket available with F (Flat) bottom for pleated bags or R (Round) bottom for standard bags.
- FSC2 style vessels accept industry standard #2 (30″) Bags.
