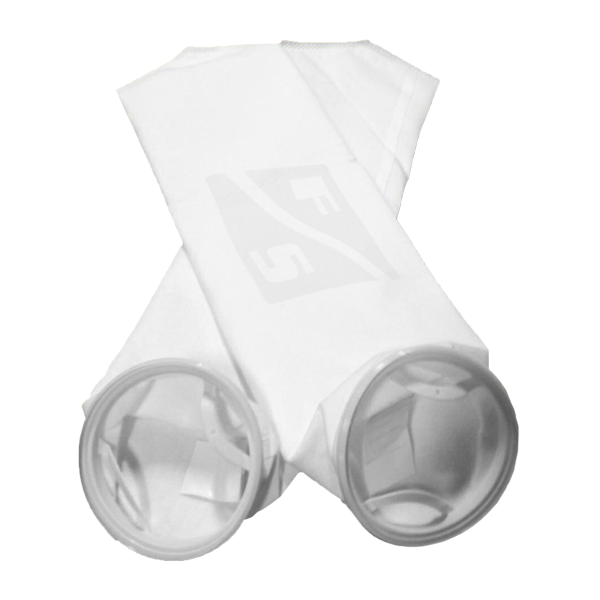

Extended Life Filter Bag Profile
Filtra-Systems Extended life filter bags are designed for longer service life using an advanced fiber blend, resulting in more filtration depth.
These filter bags are designed to significantly increase the dirt-holding capacity while utilizing seamless sonic welding technology to ensure effective filtration without filter bypass.
They are best suited for low- and medium-viscosity liquids and have two to four times the dirt-holding capacity of standard felt.
These Extended Life filter bags fit all the Filtra-Systems bag filter housings.
And, these Extended Life filter bags with polyloc ring style flanges are a perfect replacement for FSI/Pall BPOEX 5, 10, 25, 50, or 100 P2P-WE. You can order these FSI/Pall filter bags here.
Characteristics
- Tight-knit structure, eliminates fiber migration from the surface
- Hot melt seamless welding technology ensures no by-pass
- Applicable to low- and medium viscosity liquids, at high flow-rates
- Standard ring is polypropylene
| Filter area (Ft2) | Diameter (In) | Length (In) | |
|---|---|---|---|
| No.2 | 4.4 | 7 | 32 |
Chemical Resistance Chart
| PO | S.Acid | W. Acid | W.Alkali | S.Alkali | Solvent | <80 C° |
| Filter rating (um) | 001 | 005 | 010 | 025 | 050 | 100 |
| PO | X | • | • | • | • | • |
Product Code
| Material | Micron Rating | Cover Style | Bag Size | Ring Type |
| POXL | 1 | P | 02 | E |
| POXL
|
5
… 100 |
P
F
|
01
02
|
E-Welded
|
